We play a pioneering role in the area of fibreglass scraper blades. We were one of the first to employ glass fibres to reinforce plastics and so have developed a very high quality fibre composite concept.
Fibreglass-reinforced composite systems have a relatively low elasticity modulus compared to other reinforcing fibres. Their advantage is a high breaking elongation and elastic energy absorption combined with excellent resistance to chemical corrosion. Doctor blades made from this material are employed in areas with higher levels of mechanical loading.
Our experienced service technicians can assist you with the selection of the right blades for your particular application.

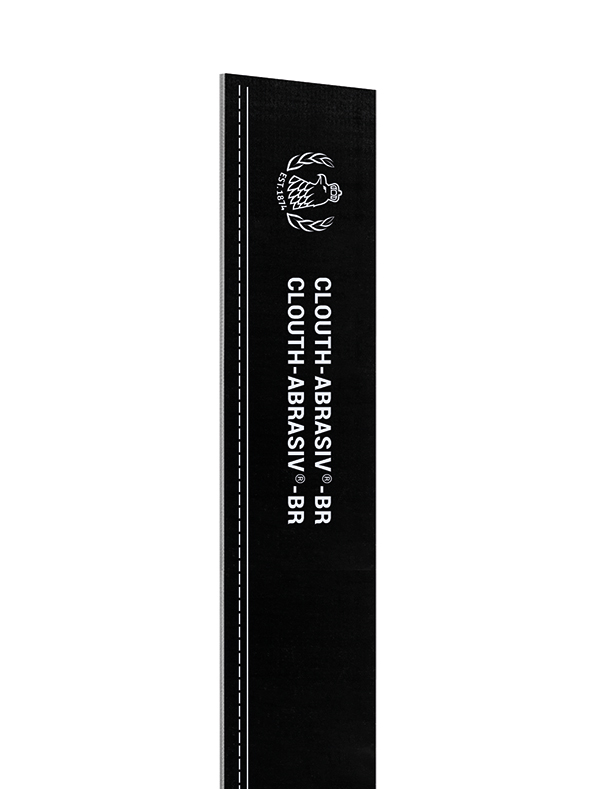

CLOUTH-ABRASIV®
Doctor Blade from advanced composite material
| MATERIAL | |
|---|---|
| Superfine glass fibre fabric with epoxy-resin system and silicone carbide layers |
| ADVANTAGES | |
|---|---|
|
MATERIAL COLOUR |
grey |
|
LOGO COLOUR |
white |
|
BENDING STRENGTH |
up to 400 N/mm² |
|
TEMPERATURE RESISTANCE (TG) |
185°C |
|
CHEMICAL RESISTANCE |
very good |
| WATER ABSORPTION | none |
| STANDARD DIMENSIONS* | |
|---|---|
|
THICKNESS mm (inch) |
WIDTH mm (inch) |
|
1.5 (0.060) |
50 (2), 75 (3) |
|
1.9 (0.075) |
50 (2), 75 (3) |
| 2.8 (0.110) | 50 (2), 75 (3) |
| * Other widths and thicknesses available on request | |
| KEY FEATURES | |
|---|---|
|
Continuous length to individual specification |
|
|
Single or double bevel |
|
|
Bevel from 15° – 90° |
|
|
Rebate or groove |
|
| Printed wear indicators |
| RIVETING | |
|---|---|
| Ready to use for all standard holder systems with appropriate rivets. | |
CLOUTH-ABRASIV®
