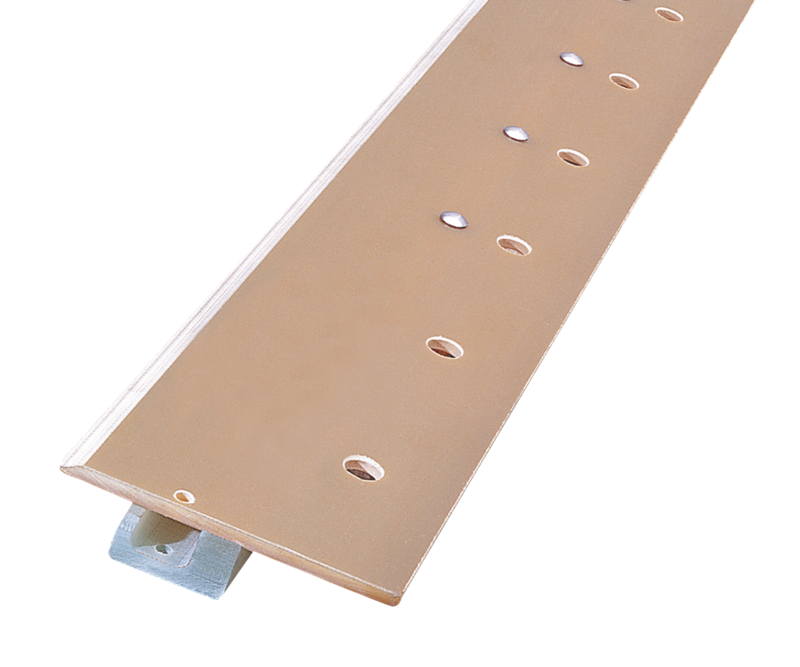

CLOUTHFLEX®-18
| Material | Advanced composite material Glass-fibre |
|---|---|
| Length mm (inch) | max. 14.000 (551) |
| Width mm (inch) | 89 (3,5) |
| Screw-on surface mm (inch) | 38 (1,5), optional 26 (1) |
| Weight | 1,1 kg/m |
- flexible
- stainless steel end pieces available
- low angled top-plate ensures sheet and dirt deflection
- low weight allows installation
- ideal for use in wire section and drying section
- direct replacement for outdated holders

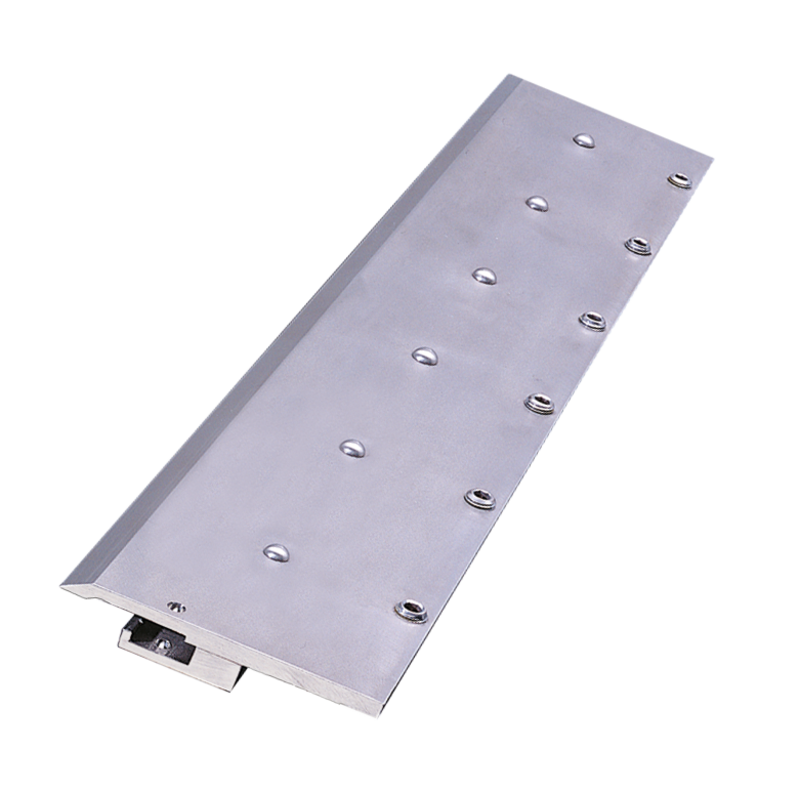

CLOUTHFLEX®-18/35 A
| Length mm (inch) | max. 14.000 (551) |
|---|---|
| Width mm (inch) | 89 (3,5) |
| Screw-on surface mm (inch) | 38 (1,5), optional 26 (1) |
| Weight | 5,4 kg/m |
- milled top-plate
- low upper section guarantees trouble-free sheet deflection and reduces contamination
CLOUTHFLEX®-18/35 AS
| Length mm (inch) | max. 14.000 (551) |
|---|---|
| Width mm (inch) | 89 (3,5) |
| Screw-on surface mm (inch) | 38 (1,5), optional 26 (1) |
| Weight | 5,1 kg/m |
- milled top-plate
- available with the option of stainless steel or fibre glass fingers
- low upper section guarantees trouble-free sheet deflection and reduces contamination
- segmented lower section guarantees good cleaning of the blade guide

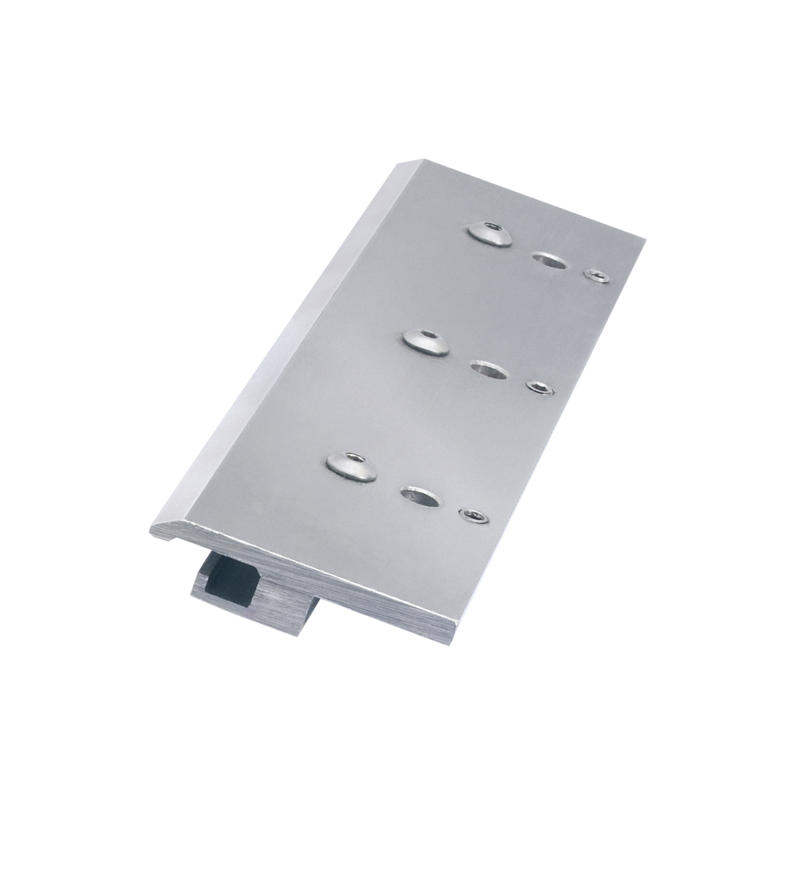

CLOUTHFLEX®-18 VA MINI
| Length mm (inch) | max. 3.000 (118) |
|---|---|
| Width mm (inch) | 55 (2,2) |
| Screw-on surface mm (inch) | 24 (0,9) |
| Weight | 3,0 kg/m |
- for blade width 50 mm
- low angled top-plate ensures sheet and dirt deflection
- optimal for cramped mounting position
Special holder

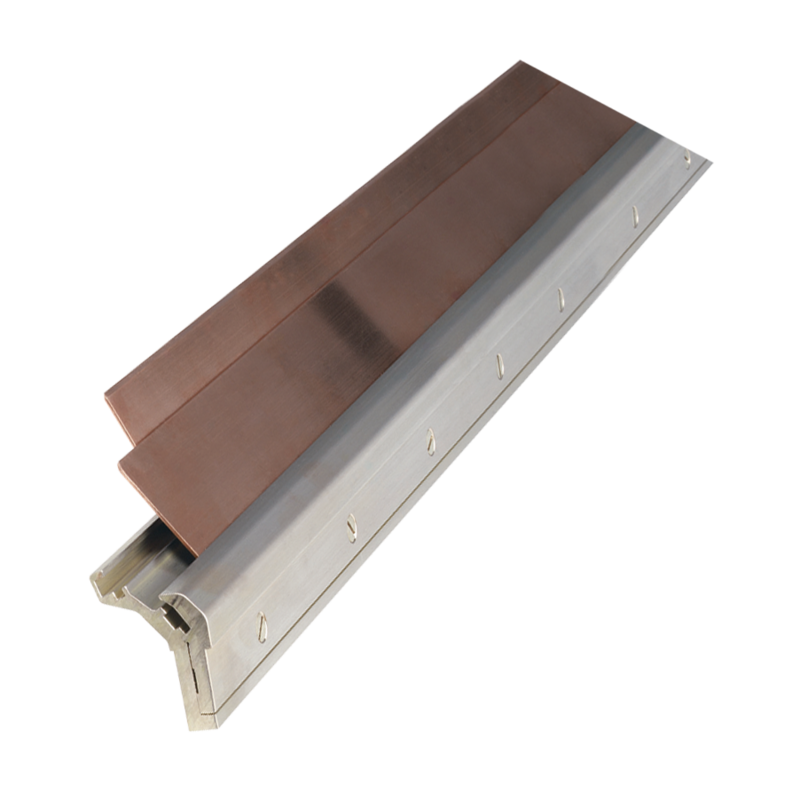

CLOUTH®-PROFIL 17C
| Material | Brass (MS58) |
|---|---|
| Length mm (inch) | max. 5.000 (196) |
| Weight | 5,3 kg/m |
- two-piece profile from drawn brass
- for blade thickness of 0.8 mm – 2.3 mm
- for blade width 50 mm
- pressure plate 45 mm x 0.9 mm
- packing strip 15.25 mm x 1.0 mm (for metal blades)
- with and without fixing holes
- completely rust-proof
- simple assembly
- cost-effective doctor holder
- for replacing existing holders (corresponds to Vickery Mark III C holder)

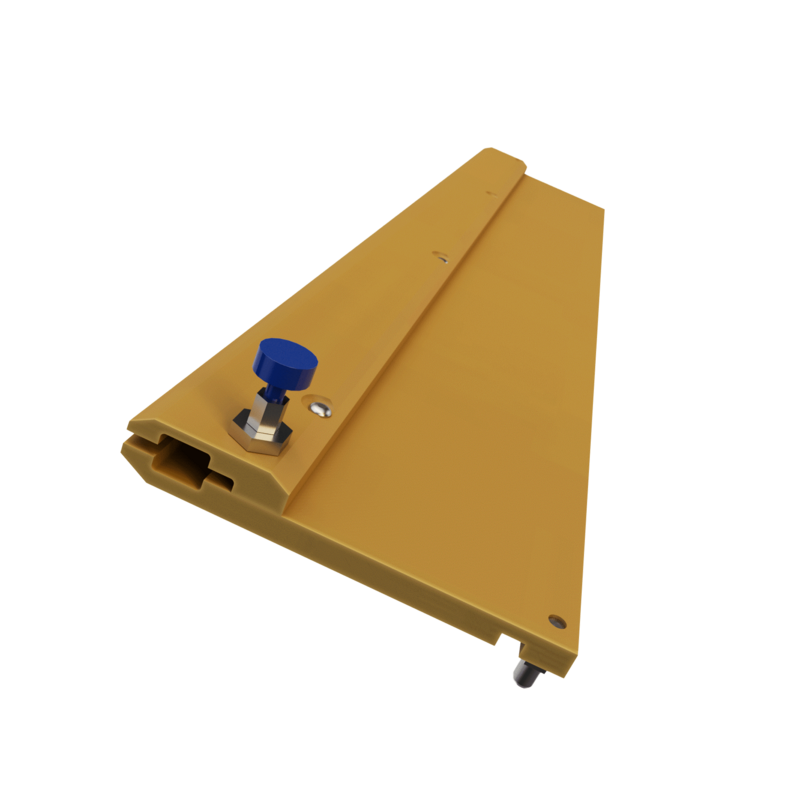

CLOUTH® MASTER SEALS SOLO
| Material | Policlouth-Super® Superfine glass fibre fabric with epoxy-resin system |
|---|---|
| Length mm (inch) | max.12.000 (472) |
| Weight | 5,3 kg/m |
| Flexural strength | up to 400 N/mm2 |
| Temperature resistance (TG) | 185°C |
| Chemical resistance | very good |
- exclusively for CLOUTH®-SEAL sealing strips
- end-to-end, individual length
- simple assembly
- low-cost holder
