We offer a selection of flexible doctor holders for various requirements and application locations.
Our pneumatic tube holders are particularly suitable for compensating for irregularities on roll and cylinder surface providing ideal and even loading for the doctor blade and across the full width of the roll or cylinder.

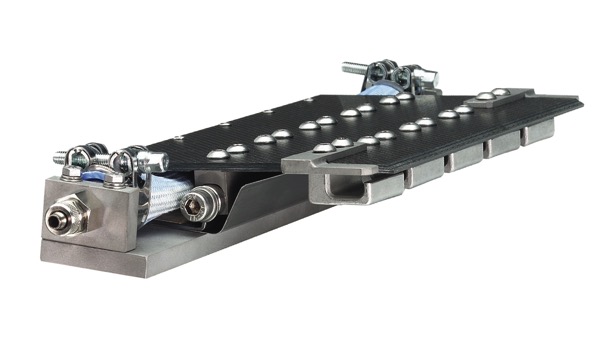

CLOUTH® HS-1 QUICK-TOP
Patented doctor holder with carbon fibre top-plate for all doctor blade materials
| KEY FEATURES | |
|---|---|
|
Top-plate with special carbon fibre construction, with pre-assembled Quick-Top-System, available in thicknesses of either 3 or 4 mm, acid and heat resistant |
|
|
AiSi 316 base plate with integrated pivot for the top-plate |
|
|
Available with the choice of CLOUTH-AIRFLEX® 100 flexible pressure tubing or CLOUTH-AIRFLEX® 230 |
|
| Fingers are available in stailness steel, aluminium or advanced polymer material, different finger profiles available (DST-K / DST-E) |
| ADVANTAGES | |
|---|---|
|

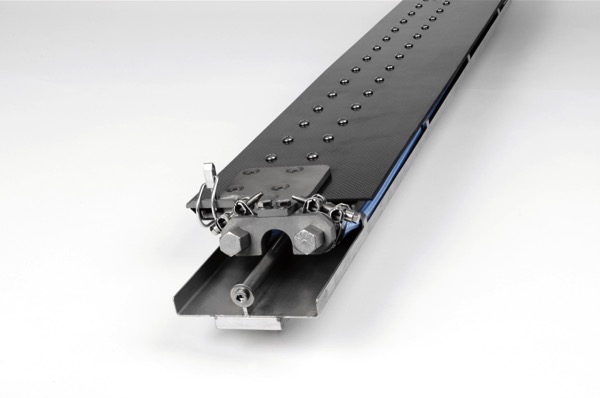

Quick removal of top-plate from either side of the machine, allowing very easy cleaning of the fingers and fast tube change |
|
|
Unique single tube design for loading pressure adjustment |
|
|
Extended tube life due to special insulated tube slot |
|
|
No flexible rubber sealings |
|
|
No permanent deformation of the top-plate |
|
|
Constant and even doctor blade loading pressure |
|
|
Lightweight, easy mounting (5.5 – 6.0 kg/m) |
|
| Can be retrofitted | |
CLOUTH® HS-1 QUICK-TOP
